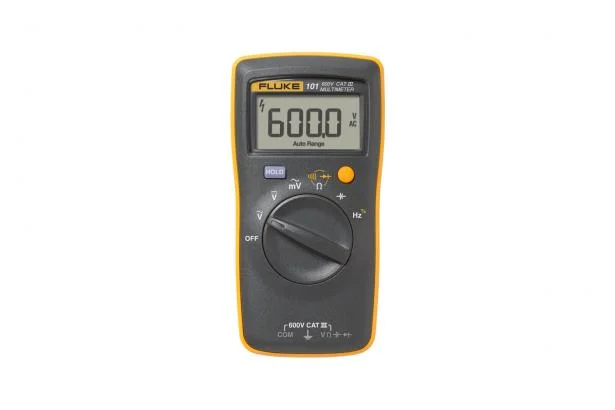

Fluke 101 Digital Multimeter

Name: Fluke 101 Digital Multimeter
Brand: FLUKE
SKU: Fluke 101
Availability: InStock
Rating: 0

Lütfen Fiyat Sorunuz

Ürüne Oy Verin

Satıcıya Danış

Specifications: Fluke 101 Digital Multimeter

Electrical Specifications
V AC (40-500Hz)	Range	600.0 mV 6.000 V 60.00 V 600.0 V
	Resolution	0.1 mV 0.001 V 0.01 V 0.1 V
	Accuracy	3.0%±3 digit 1.0%±3 digit
V DC	Range	6.000 V 60.00 V 600.0 V
	Resolution	0.001 V 0.01 V 0.1 V
	Accuracy	0.5%±3 digit
Resistance Ohms	Range	400.0 ? 4.000 k? 40.00 k? 400.0 k? 4.000 M? 40.00 M?
	Resolution	0.1 ? 0.001 k? 0.01 k? 0.1 k? 0.001 M? 0.01 M?
	Accuracy	0.5 %±3 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 1.5%±3 digit
Capacitance	Range	50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000.0 μF
	Resolution	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF
Frequency (10 Hz – 100 kHz)	Range	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz
	Resolution	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz
Duty Cycle	Range	0.1 % to 99.9 %
	Resolution	0.1 %
General Specifications
CAT Rating	CAT III 600 V
V AC Range	600.0 V
V DC Range	600.0 V
Ohms Range	40.00 M?
Auto Shutoff	Y
Continuity	Y
Capacitor	100.0 μF
Frequency	100.0 kHz
Hold	No
Duty Cycle	Yes
Size	130 mm x 65 mm x 27mm
Weight	160 g
Battery	Two AAA
Warranty	1 year
Environmental Specifications
Operating Temperature	0 °C to +40 °C
Storage Temperature	-30 °C to +60 °C
Operating Humidity	Non condensing (<10 °C) <=90% RH (at 10 °C to 30 °C) <=75% RH (at 30 °C to 40 °C) (Without Condensation)
Operating Humidity, 40 M?	80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C
Operating Altitude	2,000 meters
Storage Altitude	12,000 meters
IP Rating	IP 40 per IEC 60529
Vibration Requirements	MIL-PRF-28800F, Class 2
Drop Test Requirements	-10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment Shipping container drop per Fluke SOP 39.
EMI, RFI, EMC	Must meet all applicable requirements in IEC/EN 61326-1
Absorption/Corrosion	Per Fluke SOP 39.1
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC
