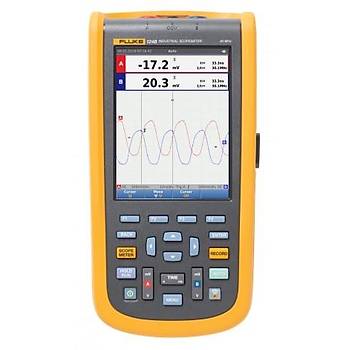

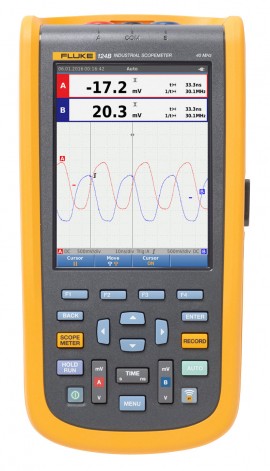

Fluke 124B Endüstiriyel El Tipi Osiloskopu
| Fiyat | : | 137.597,99 TL |
| Havale / EFT | : | 135.534,02 TL |
18.072,73 TL'den başlayan taksit seçenekleri için tıklayın.
2
Fluke 124B Specifications
| Oscilloscope Mode (Vertical) | |
| Frequency Response - DC Coupled | Without probes and test leads (with BB120): DC to 40 MHz (-3 dB) With STL120-IV 1:1 shielded test leads: DC to 12.5 MHz (-3 dB), DC to 20 MHz (-6 dB) With VP41 10:1 probe: DC to 40 MHz (-3 dB) |
| Frequency Response - AC Coupled (LF Roll Off) | Without probes and test leads: <10 Hz (-3 dB) With STL120-IV 1:1 shielded test leads: <10 Hz (-3 dB) With VP41 10:1 probe: <10 Hz (-3 dB) |
| Rise Time, Excluding Probes, Test Leads | <8.75 ns |
| Input Impedance | Without probes and test leads: 1 MΩ/20 pF With BB120: 1 MΩ/24 pF With STL120-IV 1:1 shielded test leads: 1 MΩ/230 pF With VP41 10:1 probe: 5 MΩ/15.5 pF |
| Sensitivity | 5 mV to 200 V/div |
| Analog Bandwidth Limiter | 10 kHz |
| Display Modes | A, -A, B, -B |
| Maximum Input Voltage A and B | Direct, with test leads, or with VP41 probe: 600 Vrms CAT IV, 750 Vrms maximum voltage With BB120: 600 Vrms |
| Maximum Floating Voltage, from any Terminal to Ground | 600 Vrms CAT IV, 750 Vrms up to 400 Hz |
| Oscilloscope Mode (Horizontal) | |
| Scope Modes | Normal, single, roll |
| Ranges (Normal) | Equivalent sampling: 10 ns to 500 ns/div Real time sampling: 1 μs to 5 s/div Single (real time): 1 μs to 5 s/div Roll (real time): 1 s to 60 s/div |
| Sampling Rate (for Both Channels Simultaneously) | Equivalent sampling (repetitive signals): up to 4 GS/s Real time sampling 1 μs to 60 s/div: 40 MS/s |
| Trigger | |
| Screen Update | Free run, on trigger |
| Source | A, B |
| Sensitivity A and B | At DC to 5 MHz: 0.5 divisions or 5 mV At 40 MHz: 1.5 divisions At 60 MHz: 4 divisions |
| Slope | Positive, negative |
| Advanced Scope Functions | |
| Display Modes | Normal: Captures up to 25 ns glitches and displays analog-like persistence waveform Smooth: Suppresses noise from a waveform Glitch off: Does not capture glitches between samples Envelope: Records and displays the minimum and maximum of waveforms over time |
| Auto Set (Connect-and-View) | Continuous fully automatic adjustments of amplitude, time base, trigger levels, trigger gap, and hold-off. Manual override by user adjustment of amplitude, time base, or trigger level |
| Input A and B | |
| DC Voltage (V DC) | Ranges: 500 mV, 5, 50, 500, 750 V Accuracy: ±(0.5% +5 counts) Common mode rejection (CMRR): >100 dB at DC, >60 dB at 50, 60, or 400 Hz Full scale reading: 5000 counts |
| True RMS Voltages (V AC and V AC+DC) | Ranges: 500 mV, 5, 50, 500, 750 V Accuracy for 5 to 100% of range (DC coupled) DC to 60 Hz (V AC + DC): ±(1% +10 counts) 1 to 60 Hz (V AC): ±(1% +10 counts) Accuracy for 5 to 100% of range (AC or DC coupled): 60 Hz to 20 kHz: ±(2.5% +15 counts) DC rejection (only V AC): >50 dB Common mode rejection (CMRR): >100 dB at DC; >60 dB at 50, 60, or 400 Hz Full scale reading: 5000 counts, reading is independent of any signal crest factor |
| Peak | Modes: Maximum peak, minimum peak, peak-to-peak Ranges: 500 mV, 5, 50, 500, 2200 V Accuracy: Maximum peak or minimum peak: 5% of full scale; peak-to-peak: 10% of full scale Full scale reading: 500 counts |
| Frequency | Ranges: 1, 10, 100 Hz, 1, 10, 100 kHz, 1, 10, and 70 MHz Frequency range: 15 Hz (1 Hz) to 50 MHz in continuous autoset Accuracy at 1 Hz to 1 MHz: ±(0.5% +2 counts) Full scale reading: 10,000 counts |
| RPM | Maximum reading: 50 kRPM Accuracy: ±(0.5% +2 counts) |
| Duty Cycle | Range: 2 to 98% Frequency range: 15 Hz (1 Hz) to 30 MHz in continuous autoset |
| Pulse Width | Frequency range: 15 Hz (1 Hz) to 30 MHz in continuous autoset Full scale reading: 1000 counts |
| Amperes | With current clamp Ranges: same as V DC, V AC, V AC+DC, or peak Scale factors: 0.1, 1, 10, 100, 400 mV/A, 1 V/A, 10 mV/mA Accuracy: same as V DC, V AC, V AC+DC, or peak (add current clamp uncertainty) |
| Decibel | 0 dBV: 1 V 0 dBm (600/50 Ω): 1 mW referenced to 600 or 50 Ω dB on V DC, V AC, or V AC+DC Full scale reading; 1000 counts |
| Crest Factor | Range: 1 to 10 Full scale reading: 90 counts |
| Phase | Modes: A to B, B to A Range: 0 to 359° Resolution: 1° |
| Vpwm | Purpose: To measure on pulse width modulated signals, like motor drive inverter outputs Principle: Readings show the effective voltage based on the average value of samples over a whole number of periods of the fundamental frequency Accuracy: As Vrms for sine wave signals |
| Input A to Common | |
| Ohm | Ranges: 500 Ω, 5, 50, 500 kΩ, 5, 30 MΩ Accuracy: ±(0.6% +5 counts) 50 Ω ±(2% +20 counts) Full scale reading: 50 Ω to 5 MΩ - 5000 counts; 30 MΩ - 3000 counts Measurement current: 0.5 mA to 50 nA, decreases with increasing ranges Open circuit voltage: <4 V |
| Common Continuity (Cont) | Beep: <(30 Ω ±5 Ω) in 50 Ω range Measurement current: 0.5 mA Detection of shorts of: ≥1 ms |
| Common Diode | Measurement voltage: At 0.5 mA: >2.8 V At open circuit: <4 V Measurement current: 0.5 mA Polarity: + on input A, - on COM |
| Capacitance (CAP) | Ranges: 50, 500 nF, 5, 50, 500 μF Full scale reading: 5000 counts Measurement current: 500 nA to 0.5 mA, increases with increasing ranges |
| Advanced Meter Functions | |
| Zero Set | Set actual value to reference |
| AutoHold (on A) | Captures and freezes a stable measurement result. Beeps when stable. AutoHold works on the main meter reading, with thresholds of 1 Vpp for AC signals and 100 mV for DC signals |
| Fixed Decimal Point | Activated by using attenuation keys |
| Cursor Readout | |
| Sources | A, B |
| Single Vertical Line | Average, minimum and maximum readout Average, minimum, maximum and time from start of readout (in ROLL mode; instrument in HOLD) Minimum, maximum and time from start of readout (in RECORDER mode; instrument in HOLD) Harmonics values in POWER QUALITY mode |
| Dual Vertical Lines | Peak-peak, time distance and reciprocal time distance readout Average, minimum, maximum and time distance readout (in ROLL mode; instrument in HOLD) |
| Dual Horizontal Lines | High, low and peak-peak readout |
| Rise or Fall Time | Transition time, 0%-level and 100%-level readout (manual or auto leveling; auto leveling only possible in single channel mode) |
| Accuracy | As oscilloscope accuracy |
| Recorder | |
| Meter Readings | Measurement speed: Maximum 2 measurements Record size (minimum, maximum, average): 2 M readings for 1 channel Recorded time span: 2 weeks Maximum number of events: 1024 |
| Waveform Record | Maximum sample rate: 400 K samples Size internal memory: 400 M samples recorded time Span internal memory: 15 minutes at 500 μs/div - 11 hours at 20 ms/div Record size SD card: 1.5 G samples Recorded time span SD card: 11 hours at 500 μs/div - 14 days at 20 ms/div Maximum number of events: 64 |
| General Specifications | |
| Waveform Display | Vertical: 10 div of 40 pixels Horizontal: 12 div of 40 pixels |
| Maximum Input Voltage A and B | Direct on input or with leads: 600 Vrms CAT IV for derating With banana-to BNC adapter BB120: 600 Vrms for derating Maximum floating voltage from any terminal to ground: 600 Vrms CAT IV, 750 Vrms up to 400 Hz |
| Display | Type: 5.7" color active martrix TFT Resolution: 640 x 480 |
| Interface | Optically isolated: Transfer screen copies (bitmaps), settings and data USB to PC/laptop: OC4USB optically isolated USB adapter/cable, (optional), using FlukeView® software for Windows® |
| Wireless Radio with Adapter | Frequency range: 2412 to 2462 MHz Output power: <100 mW |
| Environmental | MIL-PRF-28800F, Class 2 |
| Temperature | Battery operation: 32 to 104°F (0 to 40°C) Power adapter operation: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) non-condensing |
| Humidity (Operating) | At 32 to 50°F (0 to 10°C): non-condensing At 50 to 86°F (10 to 30°C): 95% At 86 to 104°F (30 to 40°C): 75% At 104 to 122°F (40 to 50°C): 45% |
| Altitude | Operating at 10,000' (3 km): CAT III 600 V Operating at 6600' (2 km): CAT IV 600 V Storage: 40,000' (12 km) |
| EMC Electromagnetic Compatibility | USA (FCC): 47 CFR 15 subpart B (this product is considered an exempt device per clause 15.103) |
| Enclosure Protection | IP51, ref: EN/IEC60529 |
| Safety | General: IEC 61010-1: Pollution Degree 2 Measurement: IEC 61010-2-033: CAT IV 600 V/CAT III 750 V |
| Memory | Internal memory can store 20 data sets (screen waveform and setup) Micro SD card slot with optional SD card (maximum size of 32 GB) |
| Power | External: Via power adapter BC430 Input voltage: 10 to 21 V DC Consumption: 5 W typical Input connector: 5 mm jack Internal: Via battery pack BP290 Battery power: Rechargeable Li-Ion 10.8 V Operating time: 7 hours with 50 % backlight brightness Charging time: 4 hours with test tool off, 7 hours with test tool on Allowable ambient temperature: 32 to 104°F (0 to 40°C) during charging |
| Dimensions | 10.2 x 5.2 x 2.15" (259 x 132 x 55 mm) |
| Weight | 3.2 lbs (1.4 kg) including battery pack |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | Fluke 124B |
| Marka | FLUKE |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
