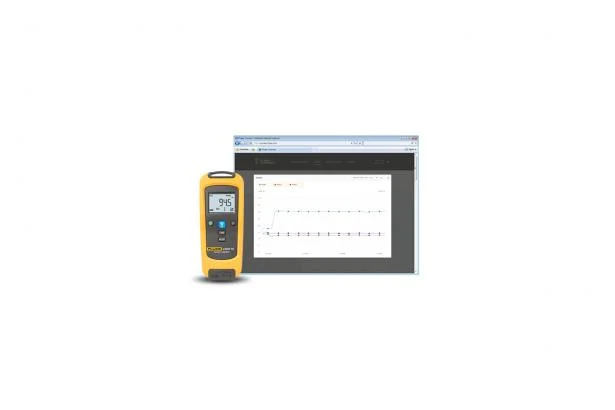

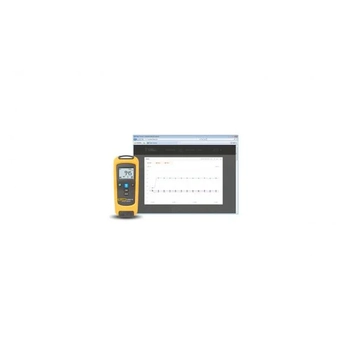

Fluke a3002 FC Wireless AC/DC Current Module

Name: Fluke a3002 FC Wireless AC/DC Current Module
Brand: FLUKE
SKU: Fluke a3002
Availability: InStock
Rating: 0

Lütfen Fiyat Sorunuz

Ürüne Oy Verin

Specifications: Fluke a3002 FC Wireless AC/DC Current Module

AC/DC Current Function
A DC	Range / resolution	1000 A / 0.1 A
	Accuracy¹	(0.5% + 3)
A AC	Range / resolution	600.0 A / 0.1 A
	Accuracy¹	(1.0% + 3)
1. AC accuracy is specified from 45 Hz to 1000 Hz
Specifications
Maximum voltage between terminal and earth ground (module)	30 V DC or AC RMS
LCD w/backlight	3½ digits, 6000 counts, 4/sec update rate
Log rate/Interval	Adjustable by PC from 1 sec to 1 hr, default 1 min
Battery type	2 AA Alkaline batteries, NEDA 15A, IEC LR6
Battery life	400 hours minimum
Memory	Record up to 65,000 readings
RF communications	2.4 GHz ISM Band
RF communication range	Open air, unobstructed	Up to 20 m
	Obstructed, sheetrock wall	Up to 6.5 m
	Obstructed, concrete wall or steel electrical enclosure	Up to 3.5 m
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +60°C
Temperature coefficient	0.1 X (specified accuracy) / °C (< 18°C or > 28°C)
Relative humidity	0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C)
EMC	IEC 61236-1, Portable
Safety compliance	Protected to IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition Pollution Degree 2
Certifications	CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating	IP42
Size (HxWxD)	160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in)
Weight	0.255 kg (9 oz)
Warranty	Three years
