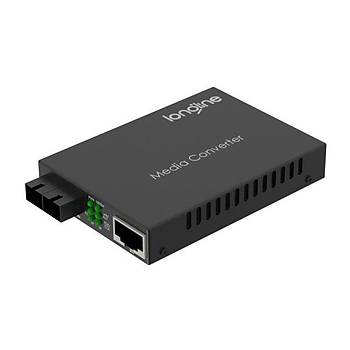

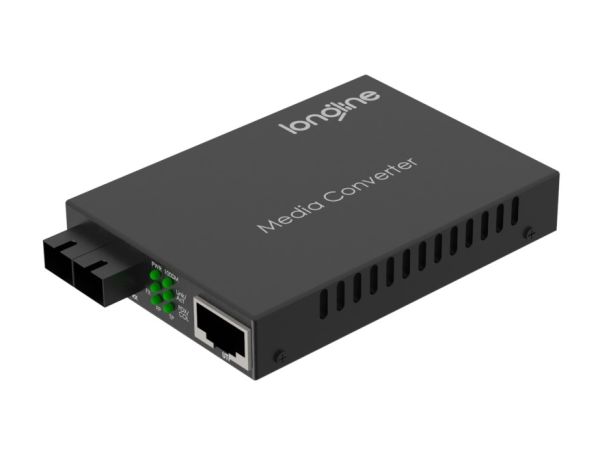

LONGLINE SC to RJ45 Media Converter ( Single Mode )
2.1 Features
· In accordance with Ethernet standards IEEE802.3, 10/100Base-TX/1000Base-TX and 1000Base-FX
· Supported Ports: SC for optical fiber; RJ45 for twisted pair
· Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
· Auto-negotiation and speed autosensing
· Auto MDI/MDIX supported without need of cable selection
· Up to 6 LEDs for status indication of optical power port and UTP port
· External and built-in DC power supplies provided
· Up to 1024 MAC addresses supported
· 512 kb data storage integrated, and 802.1X original MAC address authentication supported
· Conflicting frames detection in half-duplex and flow control in full duplex supported
2.2 Technical Parameters
| Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical Media Converter | |
| Number of Network Ports | 1 channel |
| Number of Optical Ports | 1 channel |
| NIC Transmission Rate | 10/100/1000Mbit/s |
| NIC Transmission Mode | 10/100/1000M adaptive with support for automatic inversion of MDI/MDIX |
| Optical Port Transmission Rate | 1000Mbit/s |
| Operating Voltage | AC 220V or DC +5V |
| Overall Power | <3W |
| Network Ports | RJ45 port |
| Network Ports | Optical Port: SC, FC,ST (Optional) Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um Wavelength: Single-Mode: 1310/1550n |
| Data Channel | IEEE802.3x and collision base backpressure supported Working Mode: Full/half duplex supported Transmission Rate: 1000Mbit/s |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | Converter Single Mode |
| Marka | LongLine |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
