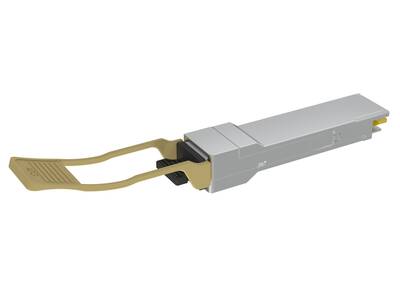

Cisco Uyumlu 40G SFP Modul SR4 QSFP+ 850nm
2
Specifications
| Cisco Compatible | QSFP-40G-SR4-LL | Vendor Name | Longline |
| Form Factor | QSFP+ | Max Data Rate | 42Gbps (4x 10.5Gbps) |
| Wavelength | 850nm | Max Cable Distance | 150m@OM4/100m@OM3 |
| Connector | MTP/MPO-12 Male | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -7.6~1dBm | Receiver Sensitivity | <-11.1dBm |
| Powerbudget | 3.5dB | Receiver Overload | 2.4dBm |
| Power Consumption | <1.5W | Extinction Ratio | >3dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Host FEC | Supported | Bit Error Ratio (BER) | 1,00E-12 |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436 | Warranty | 2 Years |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | 40G SFP Modul |
| Marka | Longlife |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
