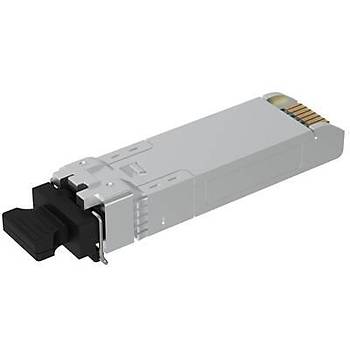

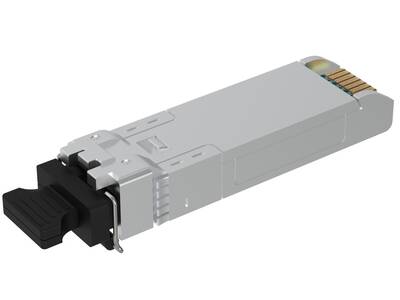

Hp-Aruba Uyumlu 10G SFP+ LC Modul Multi Mode J9150D
Specifications
|
HPE Aruba Compatible |
J9150D |
Vendor Name |
Longline |
|
Form Factor |
SFP+ |
Max. Data Rate |
10.3125Gbps |
|
Wavelength |
850nm |
Max. Cable Distance |
300m@OM3/400m@OM4 |
|
Connector |
Duplex LC |
Media |
MMF |
|
Transmitter Type |
VCSEL |
Receiver Type |
PIN |
|
TX Power |
-7.3~-1dBm |
Receiver Sensitivity |
< -11.1dBm |
|
Powerbudget |
3.8dB |
Receiver Overload |
-1dBm |
|
Typical Power Consumption |
<1W |
Extinction Ratio |
>3dB |
|
Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
Protocols |
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | J9150D |
| Marka | Longlife |
| Stok Durumu | Var |
