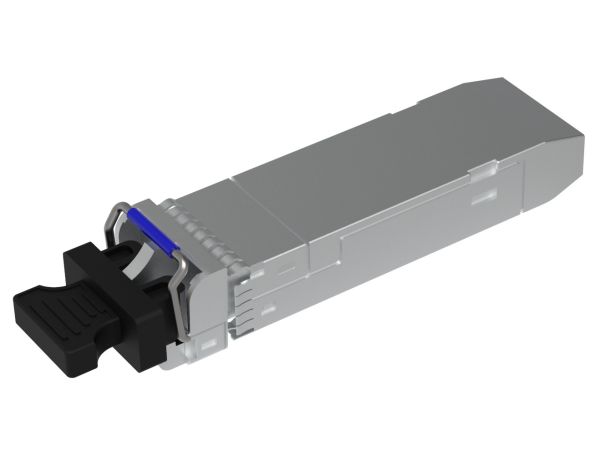

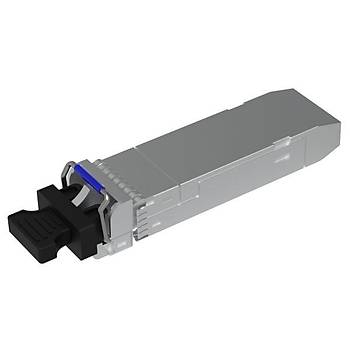

Hp-Aruba Uyumlu 10G SFP+ Modul Single Mode J9151D
1
Specifications
|
Compatible |
J9151D |
Vendor Name |
Longline |
|
Form Factor |
SFP+ |
Max. Data Rate |
10.3125Gbps |
|
Wavelength |
1310nm |
Max. Cable Distance |
10km |
|
Connector |
Duplex LC |
Media |
SMF |
|
Transmitter Type |
DFB |
Receiver Type |
PIN |
|
TX Power |
-8.2~-0.5dBm |
Receiver Sensitivity |
< -14.4dBm |
|
Powerbudget |
6.2dB |
Receiver Overload |
0.5dBm |
|
Typical Power Consumption |
<1W |
Extinction Ratio |
>3.5B |
|
Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
Protocols |
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | J9151D |
| Marka | Longlife |
| Stok Durumu | Var |
| Garanti (Yıl) | 2 |
